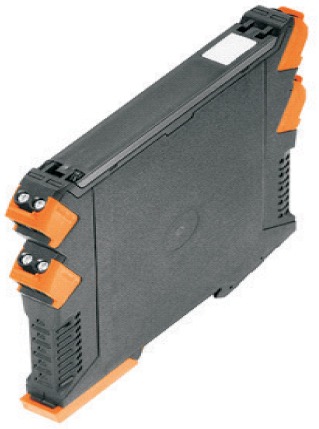

Universal Converter
- State of the art 4-20mA universal converter
-
Wide variety of inputs
- Pt 10-1000,Ni 10-1000 in 2,3,4 wire config.
- Resistance: 0-12000Ω
- Thermocouple: All standard types + Custom also
- mV: -150mV to +150mV
- Potentiometer
- Unmatched accuracy: Best in class
- Slim form factor
- Ideal choice for critical applications requiring high precision.
Features
- Advanced diagnostics
- Open circuit
- Short circuit
- Sensor wire resistance(R>50Ωfor RTD,10KΩ for Thermocouple, NE89)
- Low voltage operation
- Maximum loop resistance is 820Ω at 24V supply voltage
- Allows for longer loop lengths
-

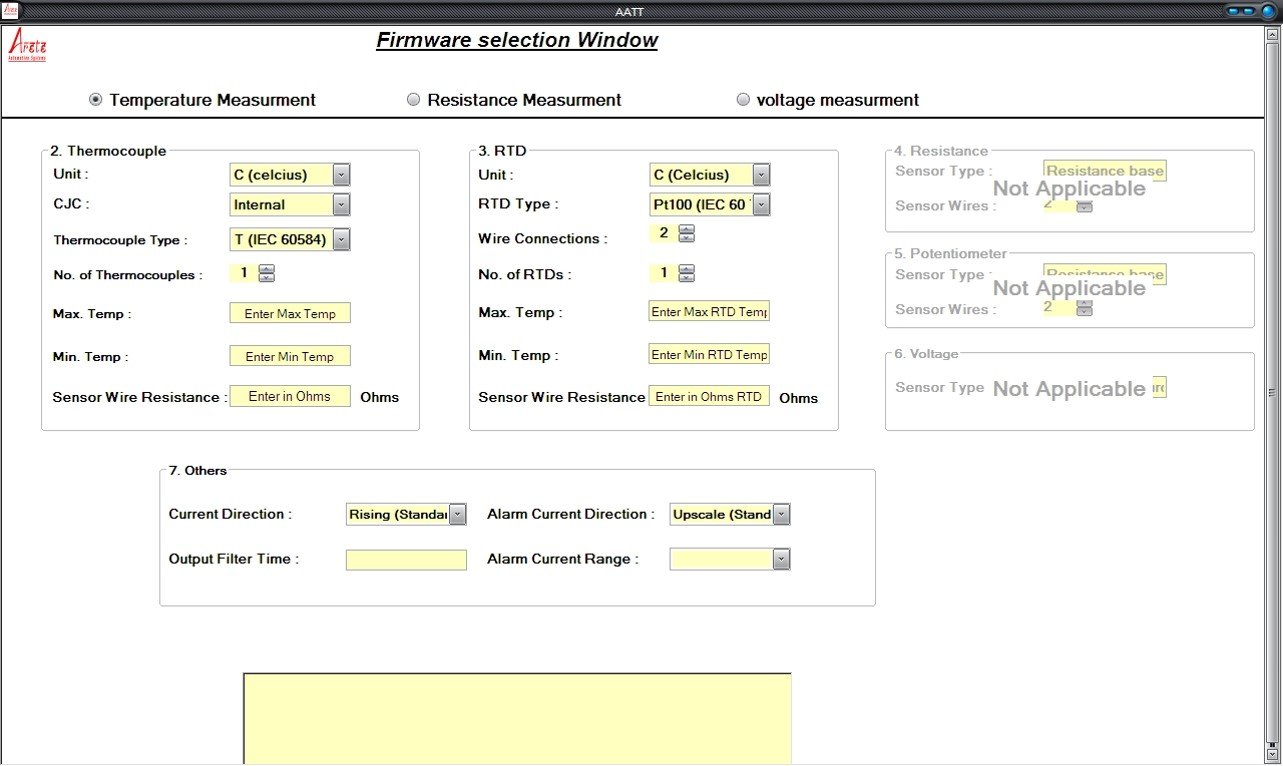

Configuration
- Through USB
Configuration s/w
