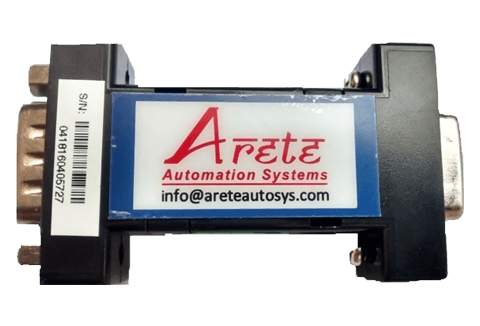

The RS232 isolator is a plug and play device which provides ~2.5KV isolation b/w the RS232 ports. This device is Port-powered, with low power consumption and auto senses serial signal rate.
Specification
- Standard : EIA RS-232 standard
- RS-232 signals : TXD, RXD, GND
- Working mode : Asynchronous, Point to Point
- Transfer Rate : 300 – 115200bps
- Isolated Signals : TXD, RXD, GND
- Transfer distance : 5 m @ 9600bps
- RS232 Port Protection : 600W Surge, 15KV ESD Protection
- Isolation : 5000V
- Port Type : DB9F, DB9M
- Temperature : -10degC to 60degC
