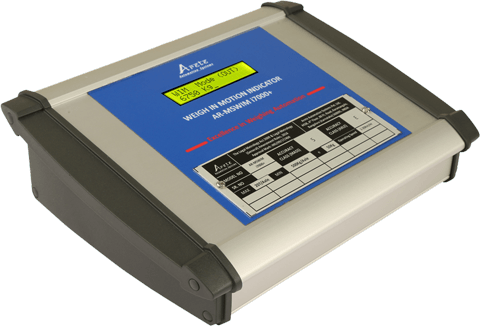

- Ar-i7000+ (SSWIM) Indicator is a state of the art, scalable, intelligent, accurate and high-speed real-time system that interfaces to load-cells banks to extract axle weight, speed & spacing information of axles passing over the weigh-bridge.
- Ar-i7000+ used by our OEM customers is approved for SSWIM applications (up to 20 KMPH) by Govt. Of India.
- Indicator capable of interfacing with load-cell based sensors as well as bending plate sensors.
- The indicator is designed to seamlessly plug-in to the next higher level application software (Toll Management software).
- Additional customization to cater to a specific need is possible due to its scalable and reconfigurable hardware and software architecture.
- Designed in India
Key Features (SSWIM)
- Integrated 400MHz Freescale Industrial -real-time controller with Xilinx Spartan-6 FPGA, 128 MB DRAM for high-speed and inline signal processing
- Wind River VxWorks real-time operating system (RTOS) for extreme reliability and determinism.
- Galvanic isolation of measurement front end for better accuracy & improved reliability. Inbuilt secondary protection against lightning.
- Supports 4/6 Wire load cell connections. 5V DC excitation for 4 load cells (350Ω−700Ω).
- Very Low Noise, high speed 24 bit, ΣΔ ADC with integrated PGA.
- On board EMI filters for reduced interference from pick-up noise.
- 16X2 LCD display for status & weight
- Interfaces :
- 10/100BASE-TX Ethernet port with built-in FTP and HTTP servers for system update & configuration.
- RS-232 DTE Serial Port with arbitrary baud rate support for peripheral devices.
- Password protected multi-dimensional calibration for variation due to load cell and vehicle dynamics.
- OTP for calibration
- Integrated vehicle separator and anti-rollback functionality
- RTC and on-board SD card for data logging
- Field Firmware upgrade features for easily updates

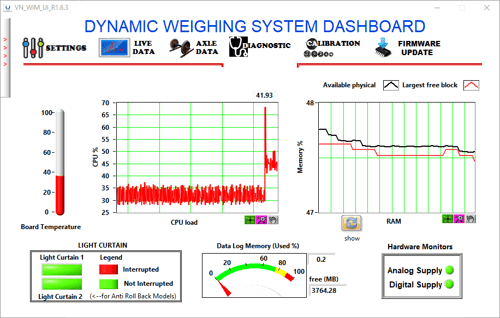

- Auto-Diagnostics of Load cells & other critical system components

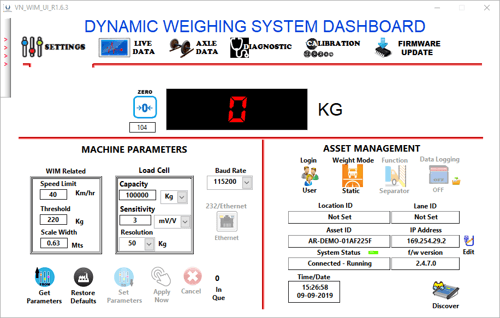

- Windows Application (user interface) s/w for configuration, calibration, debug & data analysis.
Measurement Accuracy
- Static
- Weight: ±0.5%.
- Repeatability: ±0.1%
- Dynamic
Speed (KMPH) |
Weight Accuracy |
Axle Speed |
Axle Spacing |
Repeatability |
|
|---|---|---|---|---|---|
| SSWIM | <= 20KMPH | +/- 2.5% | +/- 5% | +/- 5% | +/- 2% |
Load Cell
- Configuration: 4/6 wire
- Excitation: 5V DC for 4 loads cells of 350 ohm to 700 ohm
- Sensitivity: 1/2/3 mV/V.
- Galvanic Isolation: 1000V RMS for 1min.
Bending Plates
- Excitation: 5V DC.
- 2 Plates per Lane
- Sensitivity: From 0.50 mV/V.
- Galvanic Isolation: 1000V RMS for 1min.
Ethernet
- Communication rate: 10 Mb/s, 100 Mb/s auto-negotiated
- Maximum cabling distance: 100 m/segment
- Compatibility: IEEE 802.3
RS232
- Maximum Baud rate- 230,400 bps
- Maximum cabling distance: 5m
Power
- Supply Voltage range: 12V DC
- Consumption: 15W
