Bending Plate - Key Specification
- Sensor Dimensions: 1500 x 500 mm
- Customizable dimensions for over-sized lanes
- Carrying Capacity: 15000 Kgs
- Sensitivity (15T): 0.7mV/ V Typ
- Input Resistance: 2100 ohms
- Output Resistance: 2100 Ohms
- Length of connecting cable: 5mt
- Number of conductors: 4 + Shield
- Supply Voltage: 5 V nominal, 12 V Max
- Weight: 110 Kgs (without frame & side plates)
- Developed & Manufactured in India
Bending Plate - Development

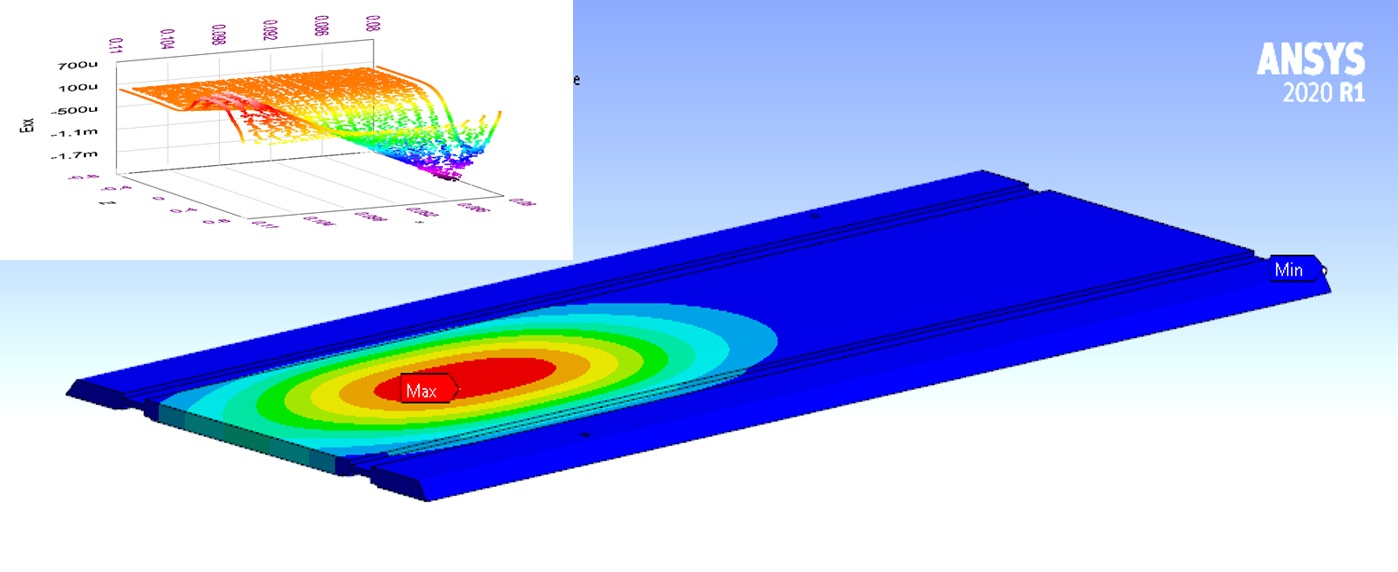

Advanced FEA analysis using industry standard tools
Bending Plate - Material Properties
- Electro Slag Remelting (ESR) grade virgin steel from cleanest iron ore in the world with low alloy content
- Advanced Quenching & Tempering for high hardness & toughness
- High quality homogeneous engineering steel
- No residual stress leading to good elastic properties
- Low carbon steel leading to excellent fatigue properties
- Guaranteed mechanical properties for each plate
- High quality strain gauges imported from Europe
