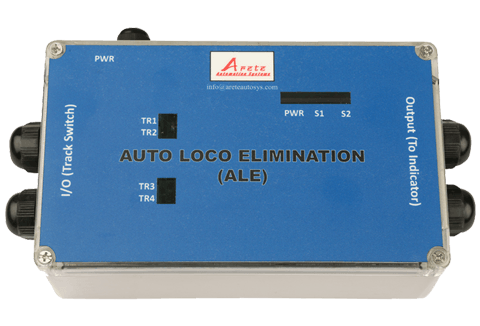

- Automatic Loco Elimination and Roll Back device interfaces with track switches and RIM indicator to
- Automatically eliminate standard railway locomotives from the train sequence and b) Detect loco rollback. In addition, this device works seamlessly with the RIM indicator to automatically classify standard wagons and brake-vans. In addition to loco elimination, this device also outputs a unique signature to enable the RIM indicator to detect rollback.
- This device is designed with reverse polarity and over voltage protection and includes interface design to connect four track switches.

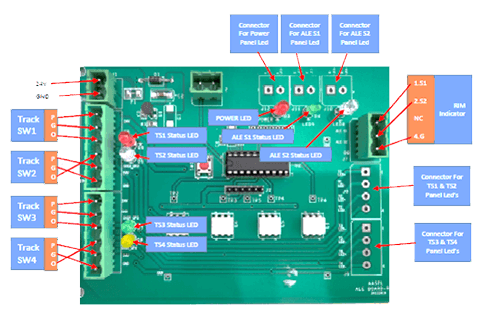

- A power led and a set of on board led’s are provided for sensors (track switch) status indication and controller output pulse indication. Also, connectors are provided to connect panel led’s.
- INPUT: 24V DC Power supply (EAPL (MS-03) [DC24V, 5A])
- OUTPUT: 3.3V TTL output – (connects to Arete indicator)
